Milk Cooling
Closed Type Bulk Milk Cooler
Our Closed Type Bulk Milk Coolers are horizontal cylindrical tanks built for cooperative dairies and processing plants handling larger daily volumes. From 3,000L to 10,000L, each tank features automated CIP cleaning, high-efficiency insulation, and multi-compressor refrigeration for reliable cooling at scale.
3000L 5000L 10000L

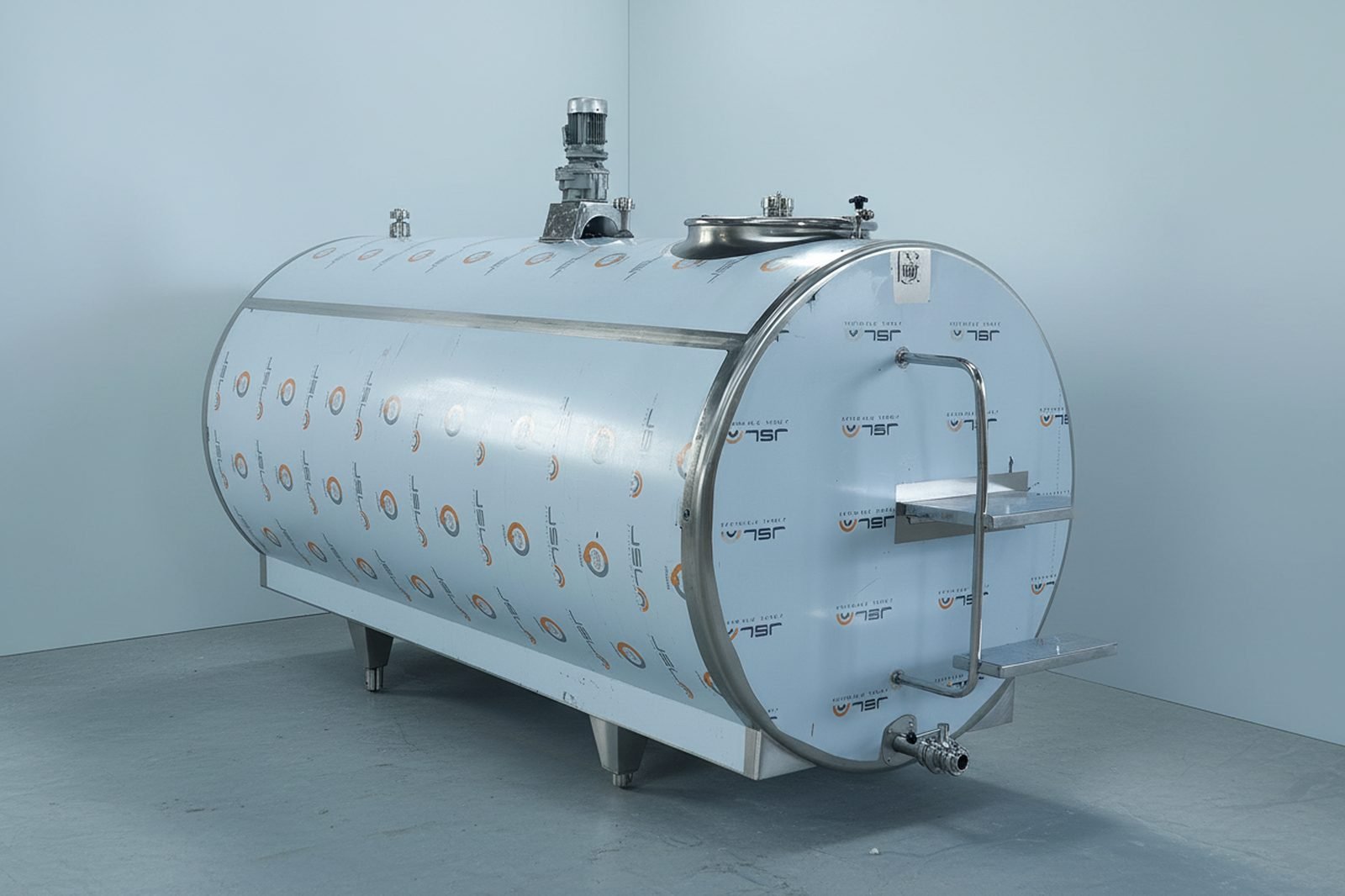

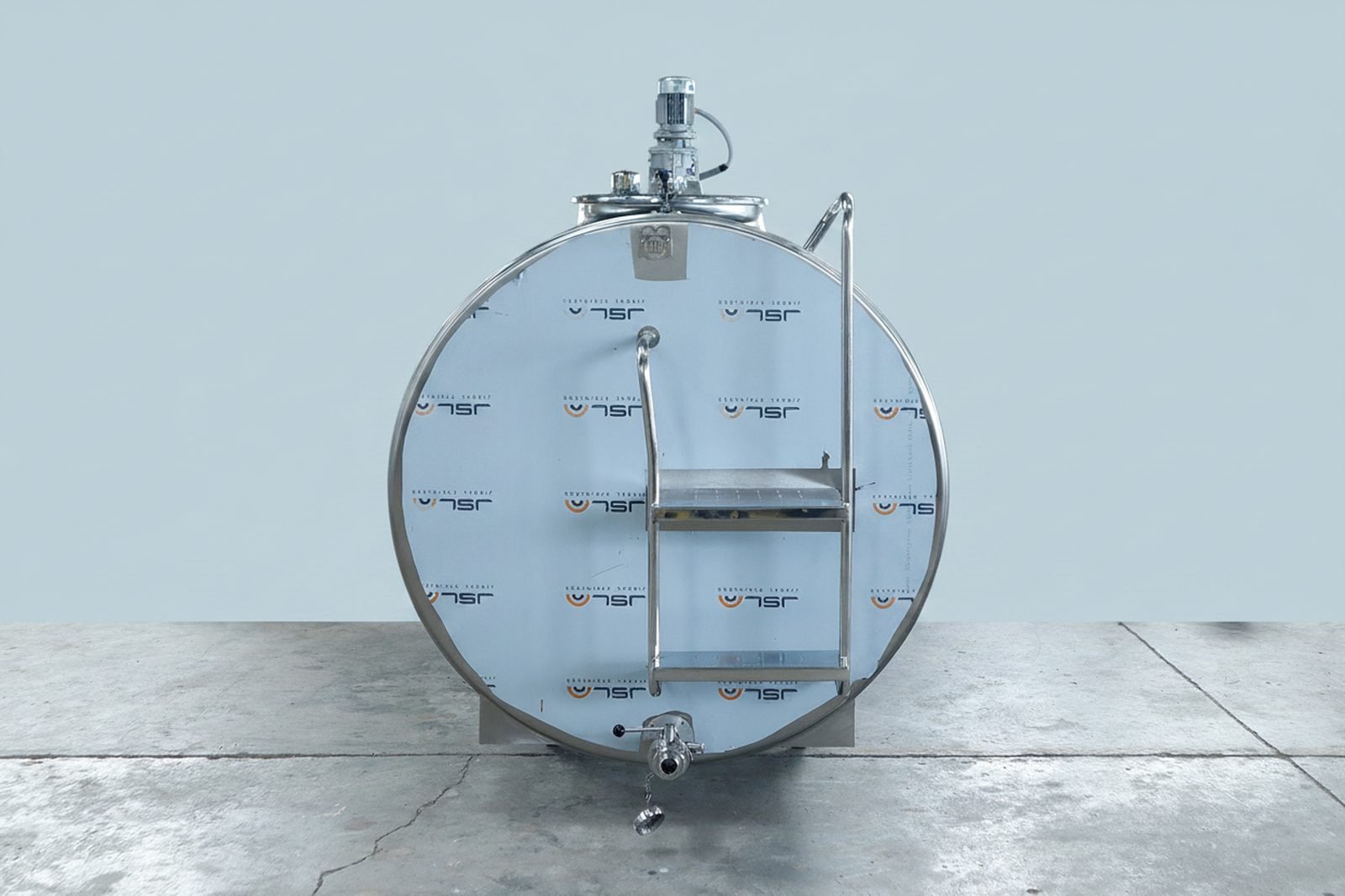

3000 Litre Closed Type Bulk Milk Cooler
Entry point into closed-type cooling — suited to cooperative dairies moving beyond farm-level collection.
‹
›
Capacity 3,000 L rated / 3,300 L gross Type Closed Type Tank Orientation Horizontal Cylindrical Closed Type Tank Material AISI 304 Stainless Steel Cooling Type Direct Expansion Cooling (All Milking) 3 hrs, 35C to 4C Cooling (Second Milking) 1.5 hrs, 10C to 4C Design Ambient 38 C Agitator 1 agitator at 23-32 RPM CIP Rotating spray jet system, fed from the milk balance tank through the milk pump Refrigerant R-404A Power Supply Three phase Dimensions (L x D x H) 3460 x 1380 x 1550 mm
Full Technical Specifications
Tank
Rated Capacity 3,000 L Gross Capacity 3,300 L Material AISI 304 Stainless Steel Inner Shell Thickness 2.0 mm Outer Shell Thickness 1.6 mm Shape / Orientation Horizontal Cylindrical Closed Type Overall Dimensions 3460 x 1380 x 1550 mm Agitator 1 agitator at 23-32 RPM Milk Volume Measurement SS 304 dip stick with calibration chart Insulation 40 kg/m3 density, 0.019 W-m/K efficiency, limits temp rise to 1C in 4 hrs when idle CIP Arrangement Rotating spray jet system, fed from the milk balance tank through the milk pump
Refrigeration System
Compressor Make / Model Emerson or equivalent (Scroll) / ZB38 Number of Compressors 2 Compressor Cooling Capacity 10,700 Kcal/hr Condenser Emerson or equivalent, 14,000 Kcal/hr total Number of Fans 2 Refrigerant R-404A Electrical Supply Three phase
Cooling Performance
Design Ambient Temperature 38 C Cooling Time — All Milking 3 hrs, 35C to 4C Cooling Time — Second Milking 1.5 hrs, 10C to 4C
Electrical
Power Supply Three phase Compressor Load 4,073 W Condenser Fan Load 160 W Agitator Load 145 W, 0.4 A Surge Starting Current 35 A

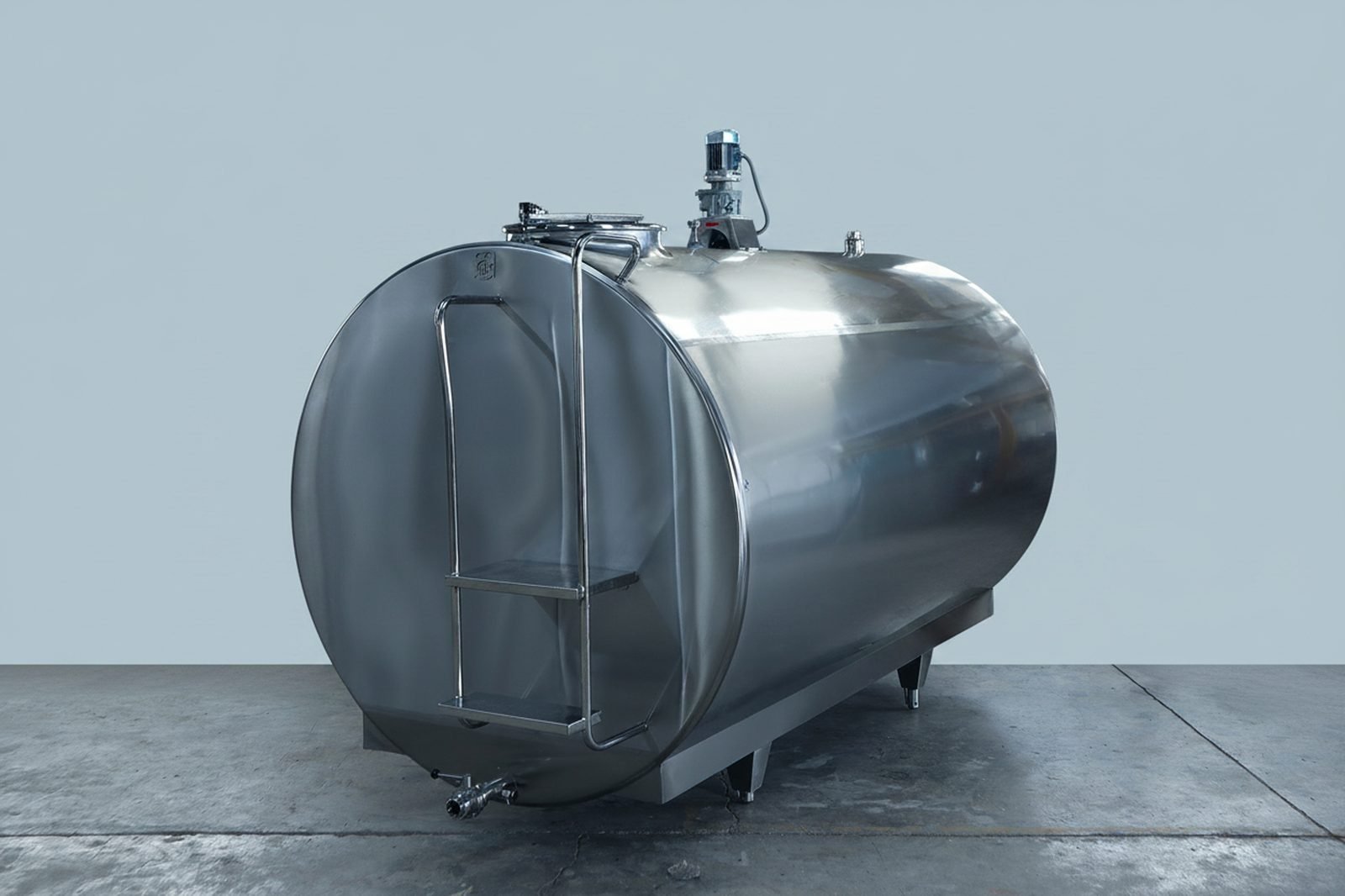

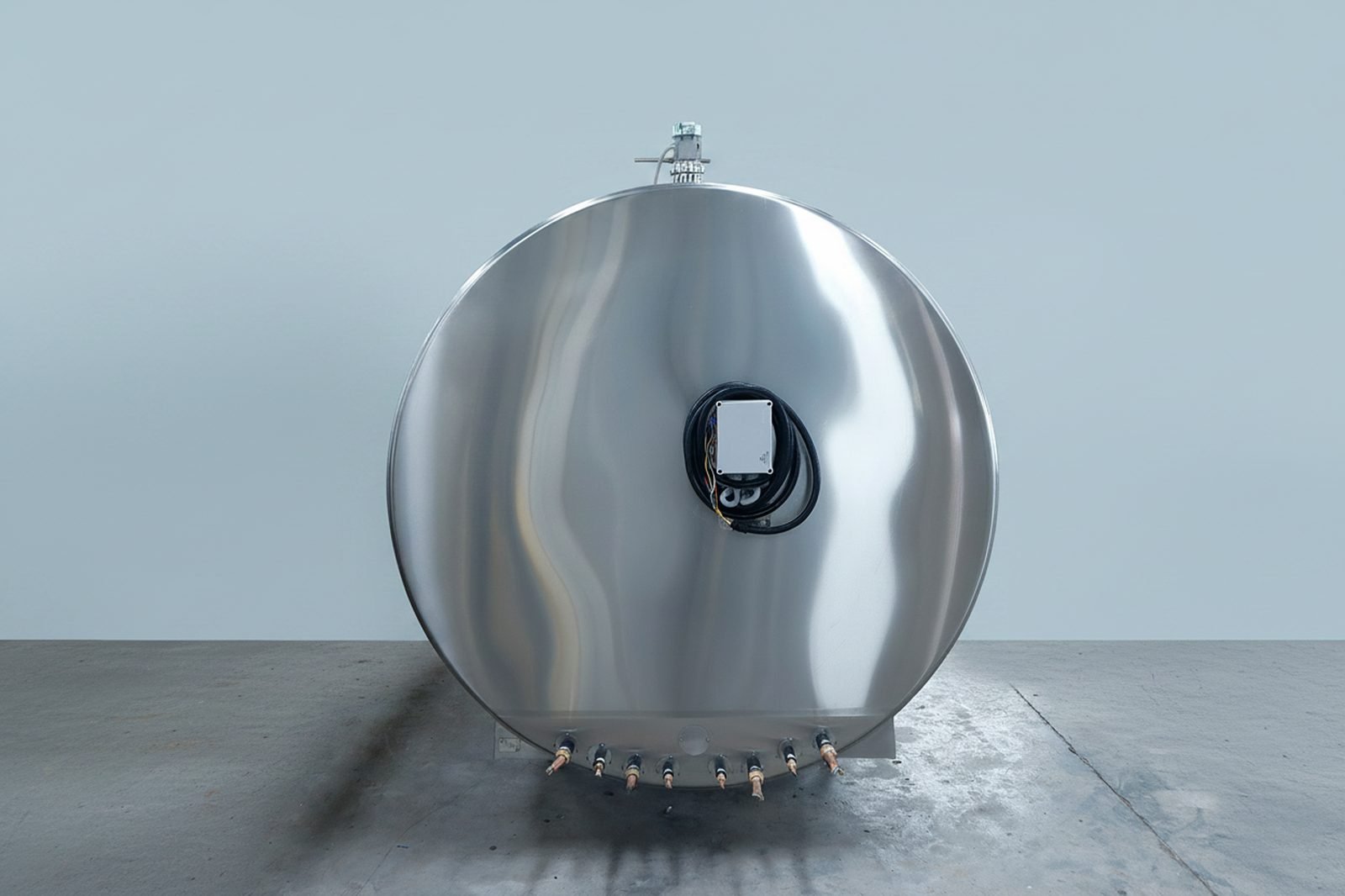

5000 Litre Closed Type Bulk Milk Cooler
Built for district cooperatives and mid-size processing plants with substantial daily collection volumes.
‹
›
Capacity 5,000 L rated / 5,500 L gross Type Closed Type Tank Orientation Horizontal Cylindrical Closed Type Tank Material AISI 304 Stainless Steel Cooling Type Direct Expansion Cooling (All Milking) 3 hrs, 35C to 4C Cooling (Second Milking) 1.5 hrs, 10C to 4C Design Ambient 38 C Agitator 1 agitator at 23-32 RPM CIP Rotating spray jet system, fed from the milk balance tank through the milk pump Refrigerant R-404A Power Supply Three phase Dimensions (L x D x H) 3460 x 1745 x 1900 mm
Full Technical Specifications
Tank
Rated Capacity 5,000 L Gross Capacity 5,500 L Material AISI 304 Stainless Steel Inner Shell Thickness 2.0 mm Outer Shell Thickness 1.6 mm Shape / Orientation Horizontal Cylindrical Closed Type Overall Dimensions 3460 x 1745 x 1900 mm Agitator 1 agitator at 23-32 RPM Milk Volume Measurement SS 304 dip stick with calibration chart Insulation 40 kg/m3 density, high efficiency CIP Arrangement Rotating spray jet system, fed from the milk balance tank through the milk pump
Refrigeration System
Compressor Make / Model Emerson / ZB48 Number of Compressors 2 Compressor Cooling Capacity 12,900 Kcal/hr Condenser Emerson, 17,000 Kcal/hr Number of Fans 2 Refrigerant R-404A Electrical Supply Three phase
Cooling Performance
Design Ambient Temperature 38 C Cooling Time — All Milking 3 hrs, 35C to 4C Cooling Time — Second Milking 1.5 hrs, 10C to 4C
Electrical
Power Supply Three phase Compressor Load 5,196 W Condenser Fan Load 240 W Agitator Load 145 W, 0.4 A Surge Starting Current 46 A

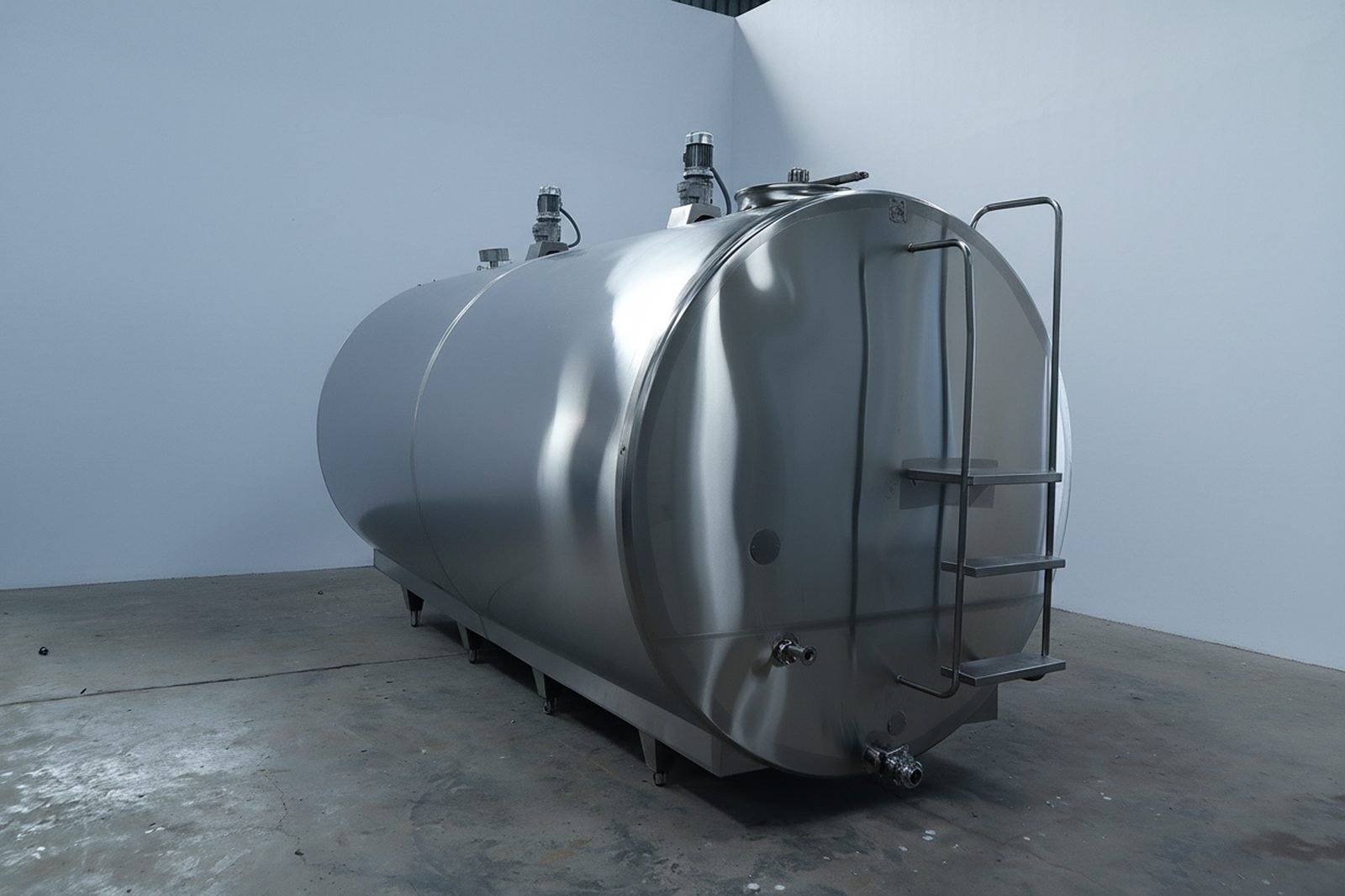

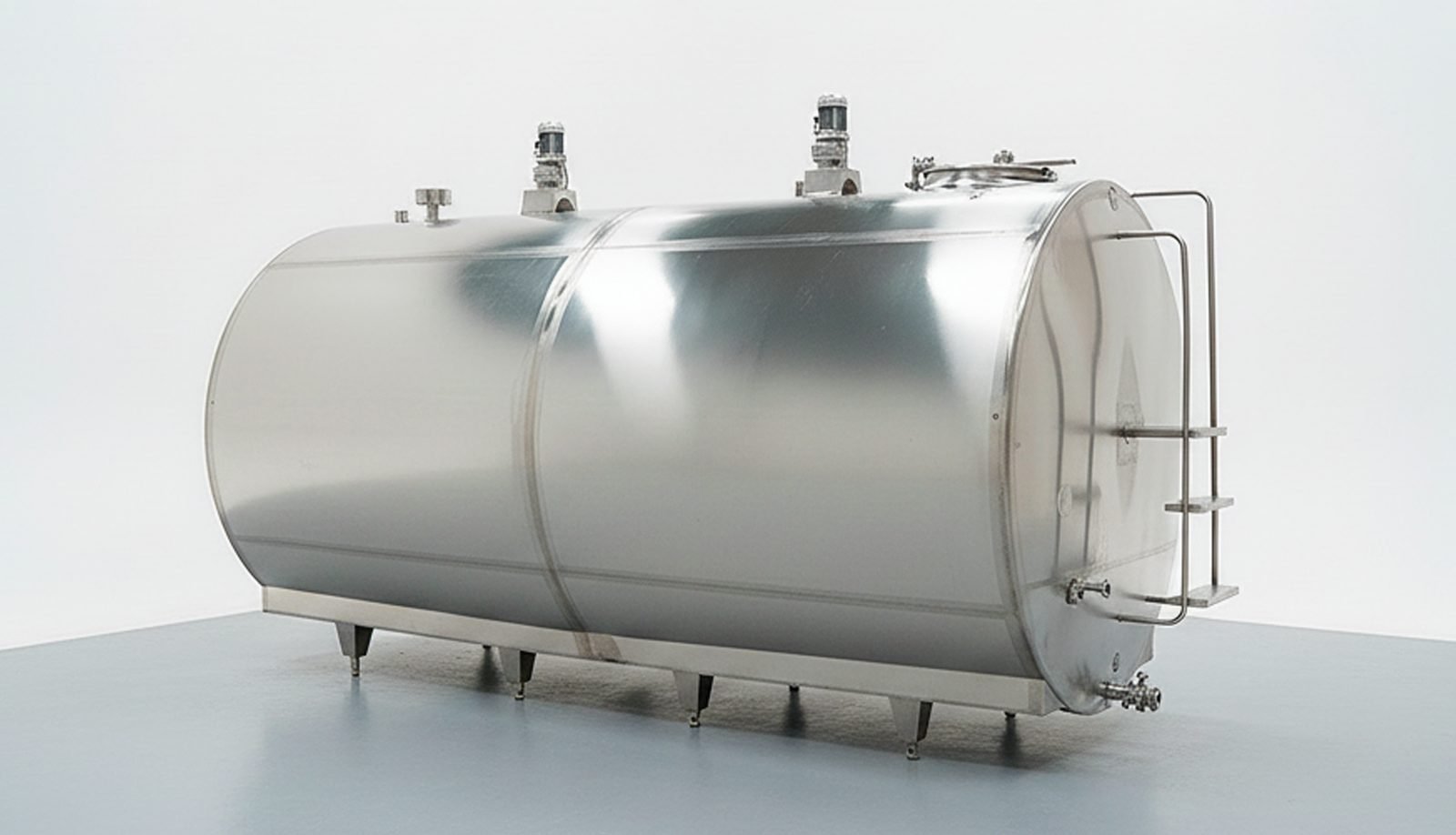

10000 Litre Closed Type Bulk Milk Cooler
Our largest capacity — designed for large-scale dairy plants and district-level milk processing operations.
‹
›
Capacity 10,000 L rated / 10,800 L gross Type Closed Type Tank Orientation Horizontal Cylindrical Closed Type Tank Material AISI 304 Stainless Steel Cooling Type Direct Expansion Cooling (All Milking) 3 hrs, 35C to 4C Cooling (Second Milking) 1.5 hrs, 10C to 4C Design Ambient 38 C Agitator 2 agitators at 23-32 RPM CIP Rotating spray jet system, fed from the milk balance tank through the milk pump Refrigerant R-404A Power Supply Three phase Dimensions (L x D x H) 4950 x 2050 x 2230 mm
Full Technical Specifications
Tank
Rated Capacity 10,000 L Gross Capacity 10,800 L Material AISI 304 Stainless Steel Inner Shell Thickness 2.0 mm Outer Shell Thickness 1.6 mm Shape / Orientation Horizontal Cylindrical Closed Type Overall Dimensions 4950 x 2050 x 2230 mm Agitator 2 agitators at 23-32 RPM Milk Volume Measurement SS 304 dip stick with calibration chart Insulation 40 kg/m3 density, high efficiency CIP Arrangement Rotating spray jet system, fed from the milk balance tank through the milk pump
Refrigeration System
Compressor Make / Model Emerson / ZB48 Number of Compressors 4 Compressor Cooling Capacity 12,900 Kcal/hr Condenser Emerson, 17,000 Kcal/hr Number of Fans 4 Refrigerant R-404A Electrical Supply Three phase
Cooling Performance
Design Ambient Temperature 38 C Cooling Time — All Milking 3 hrs, 35C to 4C Cooling Time — Second Milking 1.5 hrs, 10C to 4C
Electrical
Power Supply Three phase Compressor Load 5,196 W Condenser Fan Load 240 W Agitator Load 145 W, 0.4 A Surge Starting Current 46 A
Tank Dimension Reference — All Capacities
Type A B H H1
1000 2540 1010 1200 2050 2000 2540 1380 1550 2400 2500 3010 1380 1550 2400 3000 3460 1380 1550 2400 4000 3120 1745 1900 2750 5000 3460 1745 1900 2750 6000 4010 1745 1900 2750 8000 3930 2050 2230 3050 10000 4950 2050 2230 3050 12000 4610 2300 2230 3050 15000 6500 2300 2230 3050
All dimensions in mm. Specifications subject to change without prior notice.
