Our Products

Complete Dairy Cooling Solutions

From 100L village-level coolers to 15,000L large plant installations — every product built to ISO 9001:2015 with Emerson compressors and AISI 304 stainless steel.

Request a QuoteBrowse Products
ADFPL Project Overview
BMC Closed Type BMC Open Type Heat Recovery Unit Rapid Chilling Milk Heating Vat Farm Fresh Processor

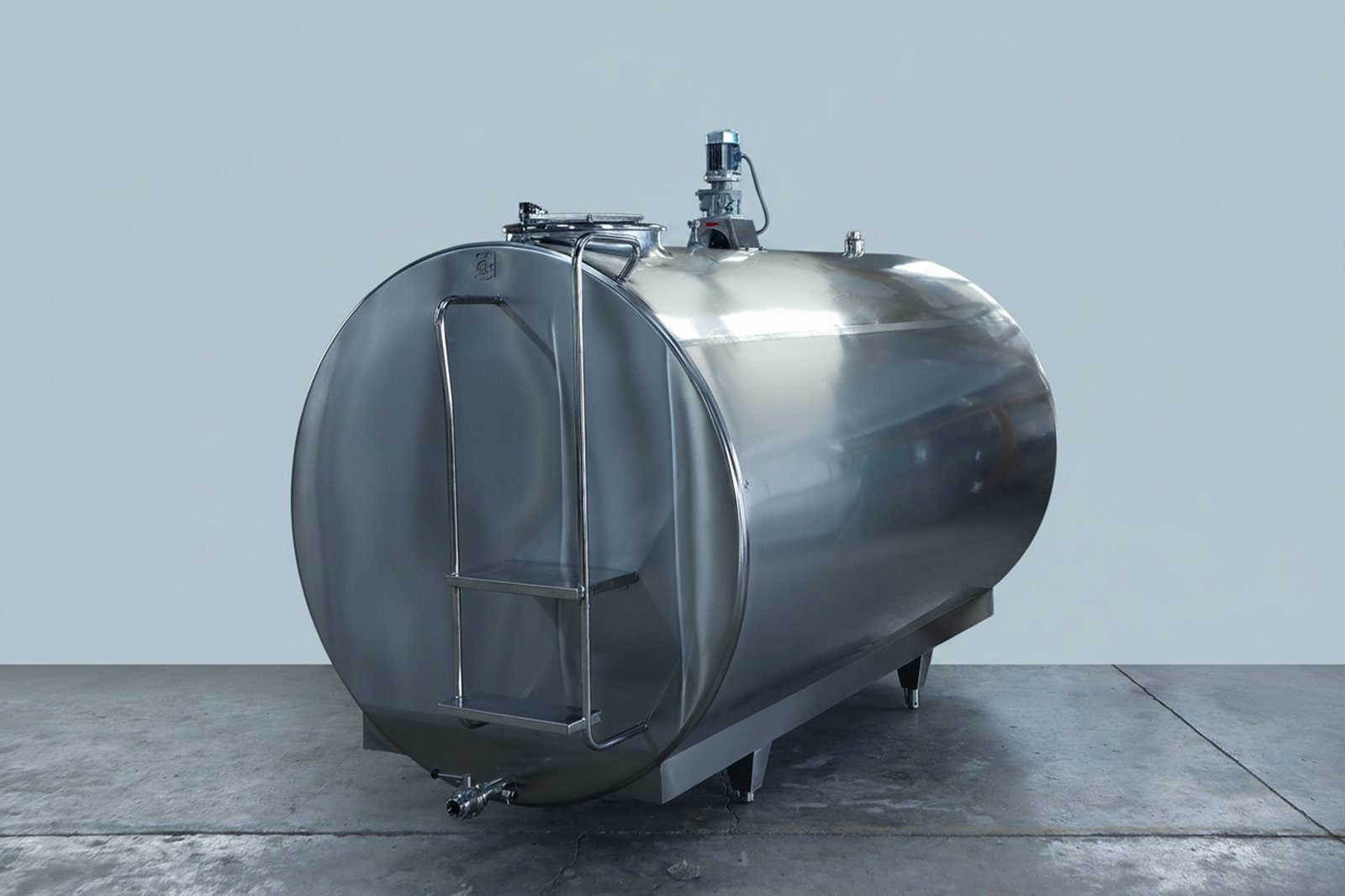

Product 01

Bulk Milk Cooler

Horizontal Closed Type

This type of milk coolers are horizontal cylinder type coolers with adjustable legs for uneven floor. It has safety design with evaporator and crash test 65 bar.

1000L2000L2500L3000L4000L5000L6000L8000L10000L12000L15000L
Request Quote Download Brochure
Tank
  • Vertical open type tank and Horizontal cylindrical type tank.
  • AISI 304 Stainless steel inner and outer vessel.
  • Smooth inner sides, rounded angles, perfectly polished welding.
  • Adjustable legs for uneven floors.
  • Bottom designed to ensure total drainage of milk.
  • Safety design of Evaporator, Crash test at 65 Bar.
  • Uniform insulation with precisely controlled infusion of high density environment friendly polyurethane foam.
  • High precision stainless steel dipstick (AISI 304) for easy and direct volume reading in mm.
  • Manhole with AISI 304 SS close fitting cover with locking provision.
  • Butterfly valve outlet with locking & sampling provision.
Refrigerating Plant
  • Direct expansion.
  • No freezing of milk with all refrigerant.
  • Cost saving due to higher cooling efficiency.
  • Performance as per class 2 all ISO 5708 standards.
Electricals

Milk tank controller manages following functions:

  • Milk temperature control.
  • Milk temperature digital display.
  • Agitation programme.
  • Compressor start up programme.
  • Extra protection against uneven voltage fluctuations for rural areas.
  • Electrical supply - Single phase 220 volt 50 Hz. or Three phase 415 volt 50 Hz.
Optional
  • Automatic C.I.P. system programmed through controller with five stage washing cycle.
  • Individual peristaltic pump for detergent.
  • Extreme efficiency of washing, due to new design of spray system.
  • Digital milk volume measurement.
Dimensions (mm)
Type (L)ABHH1
10002540101012002050
20002540138015502400
25003010138015502400
30003460138015502400
40003120174519002750
50003460174519002750
60004010174519002750
80003930205022303050
100004950205022303050
120004610230022303050
150006500230022303050
All dimensions in mm

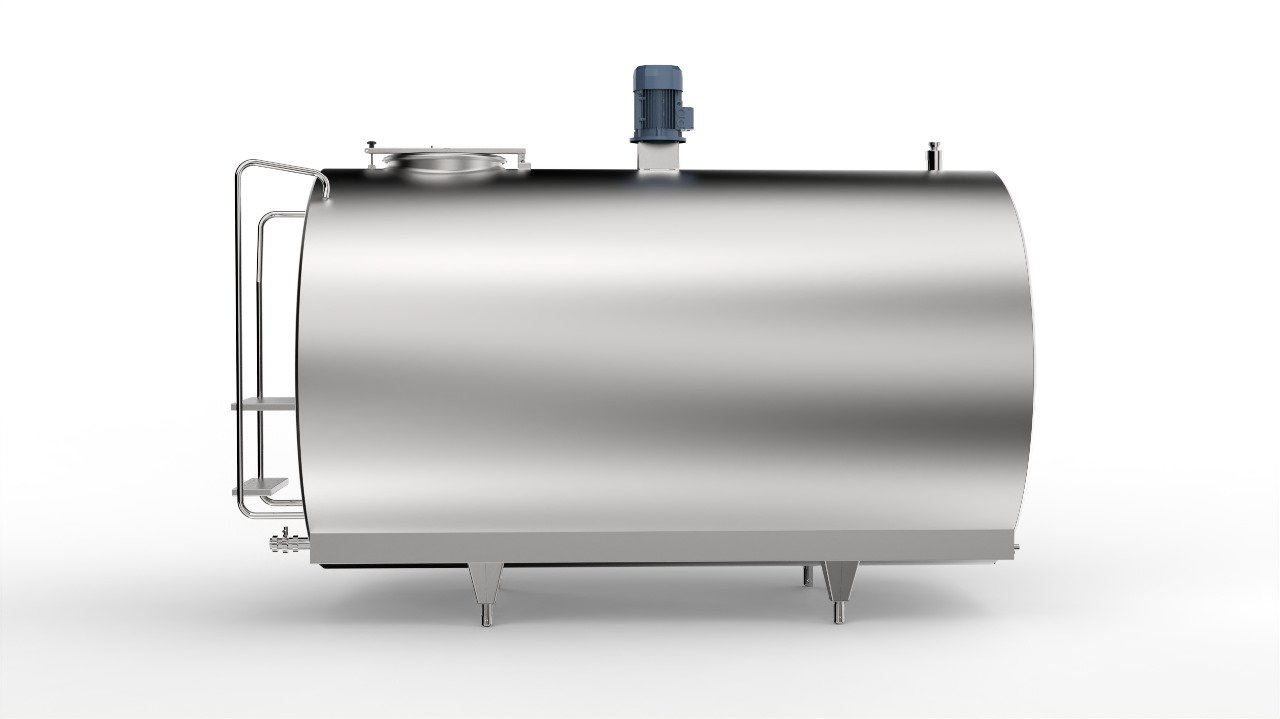

BMC Closed Type side profile

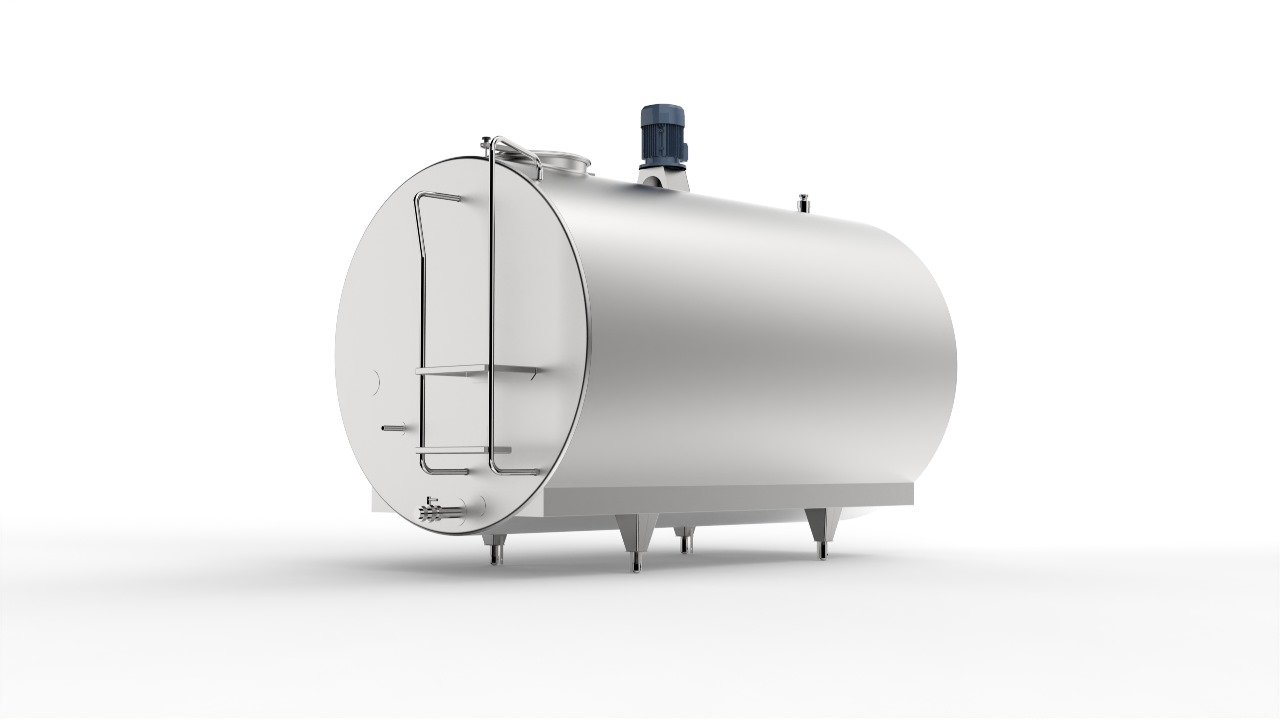

BMC Closed Type 3/4 view

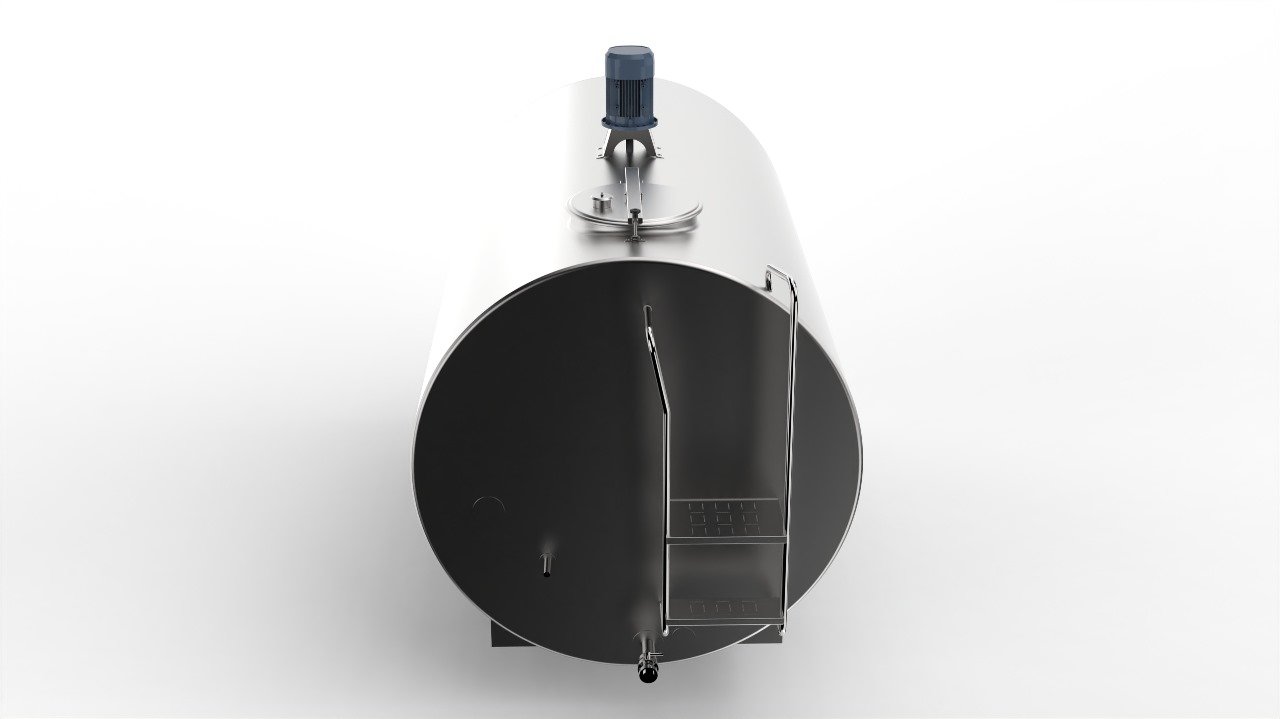

BMC Closed Type front end view
Dimension Diagram

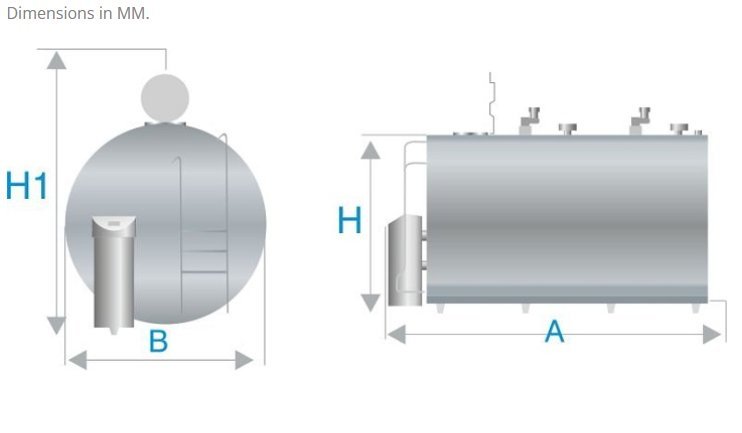

BMC Closed Type dimension diagram showing A, B, H, H1 measurements

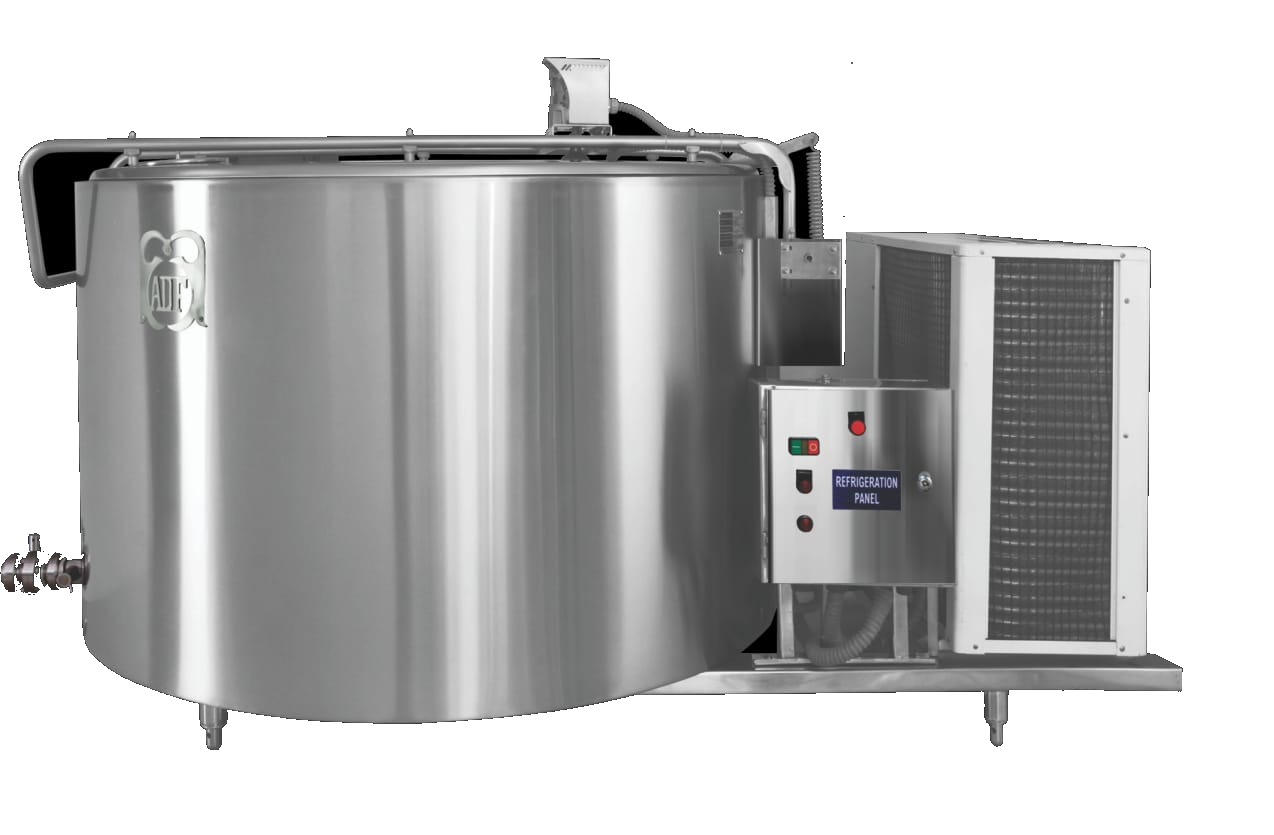

ADFPL BMC Open Type with refrigeration panel
Dimension Diagram

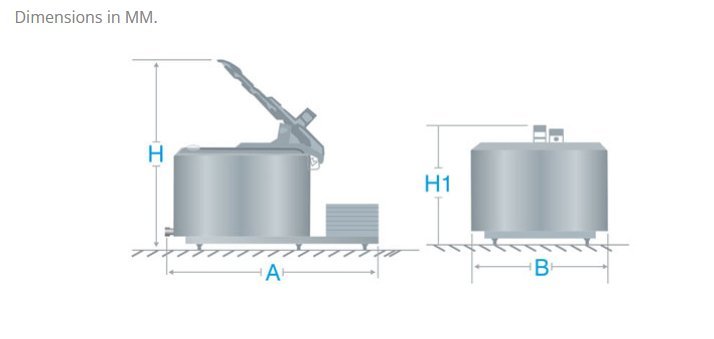

BMC Open Type dimension diagram showing A, B, H, H1 measurements

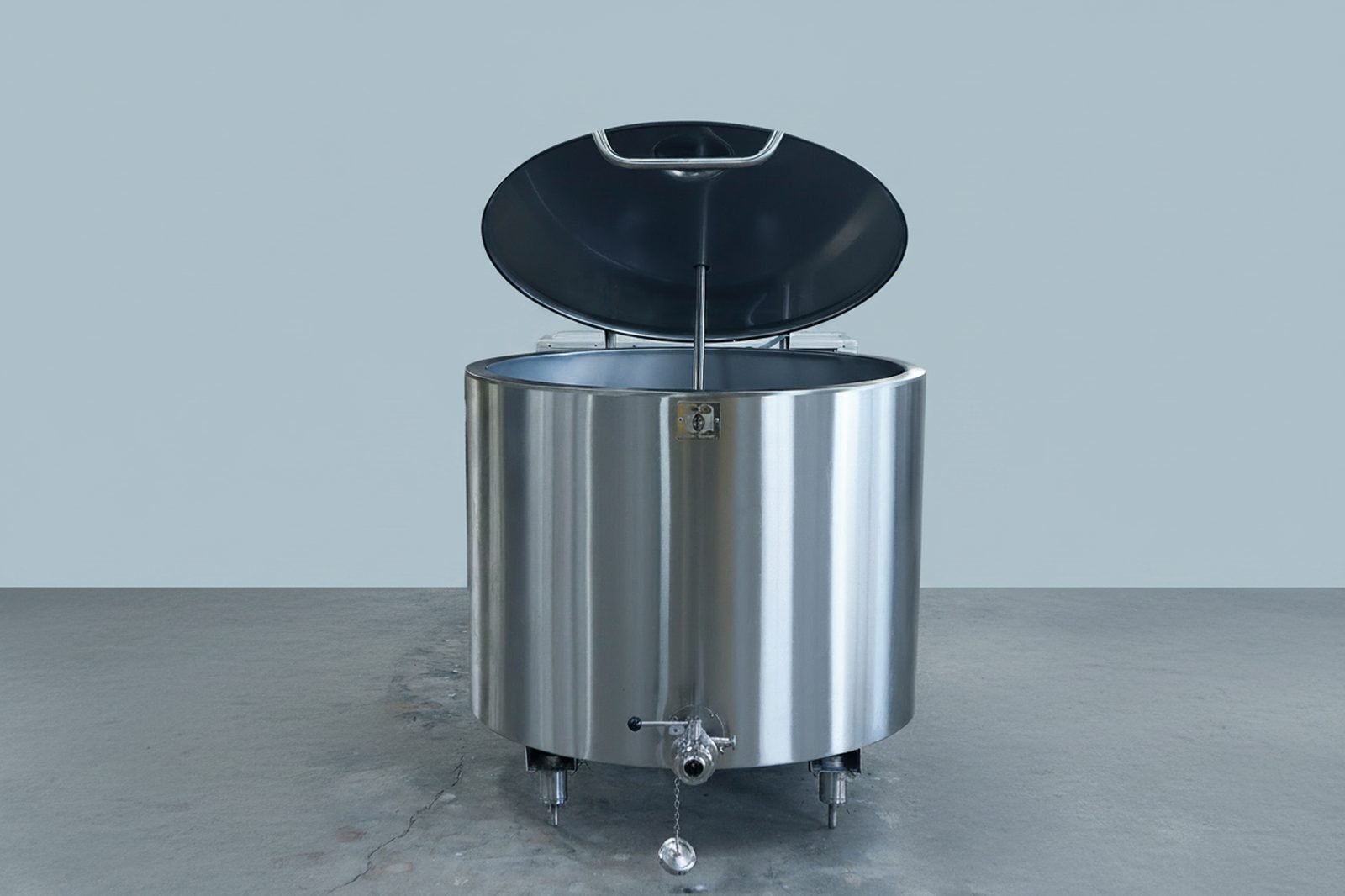

Product 02

Bulk Milk Cooler

Vertical Open Type

Open milk coolers are vertically open and have AISI 304 stainless steel inner and outer vessels. These cans are made with perfection as you can see polished welding, perfect smooth inner sides, round angles.

300L500L1000L1500L2000L2500L
Request Quote Download Brochure
Features
  • Bottom design to ensure drain of milk.
  • Fine insulation with precisely controlled infusion of eco friendly polyurethane foam.
  • Manhole with AISI 304.
  • Butterfly valve outlet with locking and sampling provision.
Tank
  • Vertical open type tank and Horizontal cylindrical type tank.
  • AISI 304 Stainless steel inner and outer vessel.
  • Smooth inner sides, rounded angles, perfectly polished welding.
  • Adjustable legs for uneven floors.
  • Bottom designed to ensure total drainage of milk.
  • Safety design of Evaporator, Crash test at 65 Bar.
  • Uniform insulation with precisely controlled infusion of high density environment friendly polyurethane foam.
  • High precision stainless steel dipstick (AISI 304) for easy and direct volume reading in mm.
  • Manhole with AISI 304 SS close fitting cover with locking provision.
  • Butterfly valve outlet with locking & sampling provision.
Refrigerating Plant
  • Direct expansion.
  • No freezing of milk with all refrigerant.
  • Cost saving due to higher cooling efficiency.
  • Performance as per class 2 all ISO 5708 standards.
Electricals

Milk tank controller manages following functions:

  • Milk temperature control.
  • Milk temperature digital display.
  • Agitation programme.
  • Compressor start up programme.
  • Extra protection against uneven voltage fluctuations for rural areas.
  • Electrical supply - Single phase 220 volt 50 Hz. or Three phase 415 volt 50 Hz.
Dimensions (mm)
Type (L)ABHH1
300110098018001250
5002100111018001250
10002800151020001450
15003145186022001400
20003145186022001600
25004000186025001800
All dimensions in mm

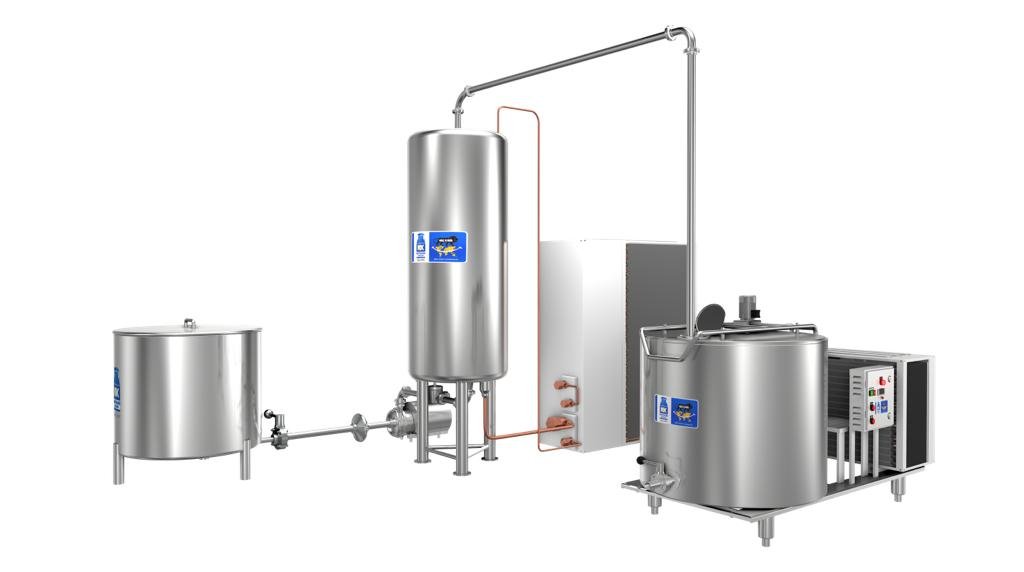

Rapid Chilling System
Live Process Demonstration
Product 03
Patented Technology

Rapid Chilling System

Patented 2-stage chilling process that rapidly reduces milk temperature to 4°C. No chilled water or brine water storage system required. Significant power savings over conventional systems.

Patented2-StageNo BrinePower Saving
Request Quote Download Brochure
Technical Specifications
ProcessPatented 2-Stage Chilling
Target Temperature4°C
Brine SystemNot Required
IP StatusPatented
Specialised Equipment

Additional Product Range

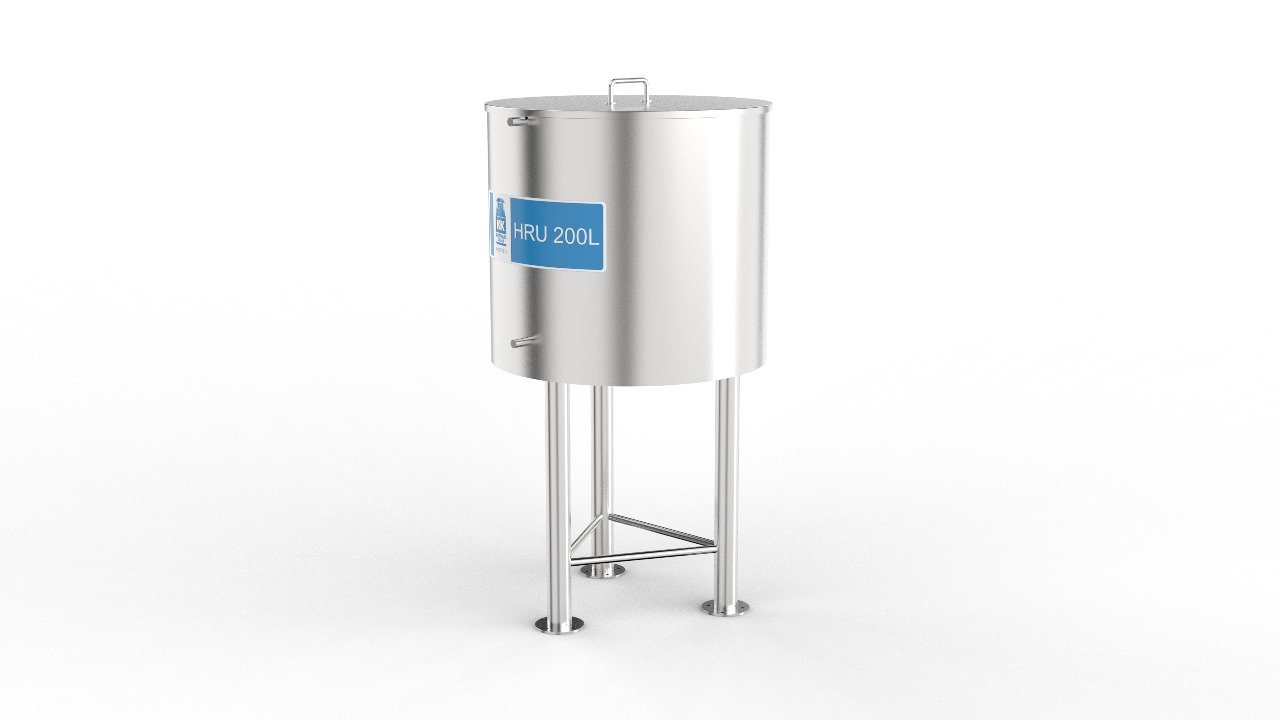

HRU Heat Recovery Unit
Energy Recovery

Heat Recovery Unit (HRU)

Recovers waste heat from refrigeration to produce hot water. Saves 30–70% on water heating costs. Laser welded evaporator. AISI 304 SS throughout.

Capacity
200–700 L
Saving
30–70%
Evaporator
Laser Welded
Material
AISI 304 SS

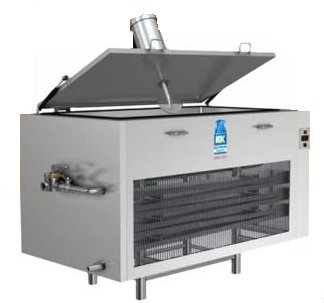

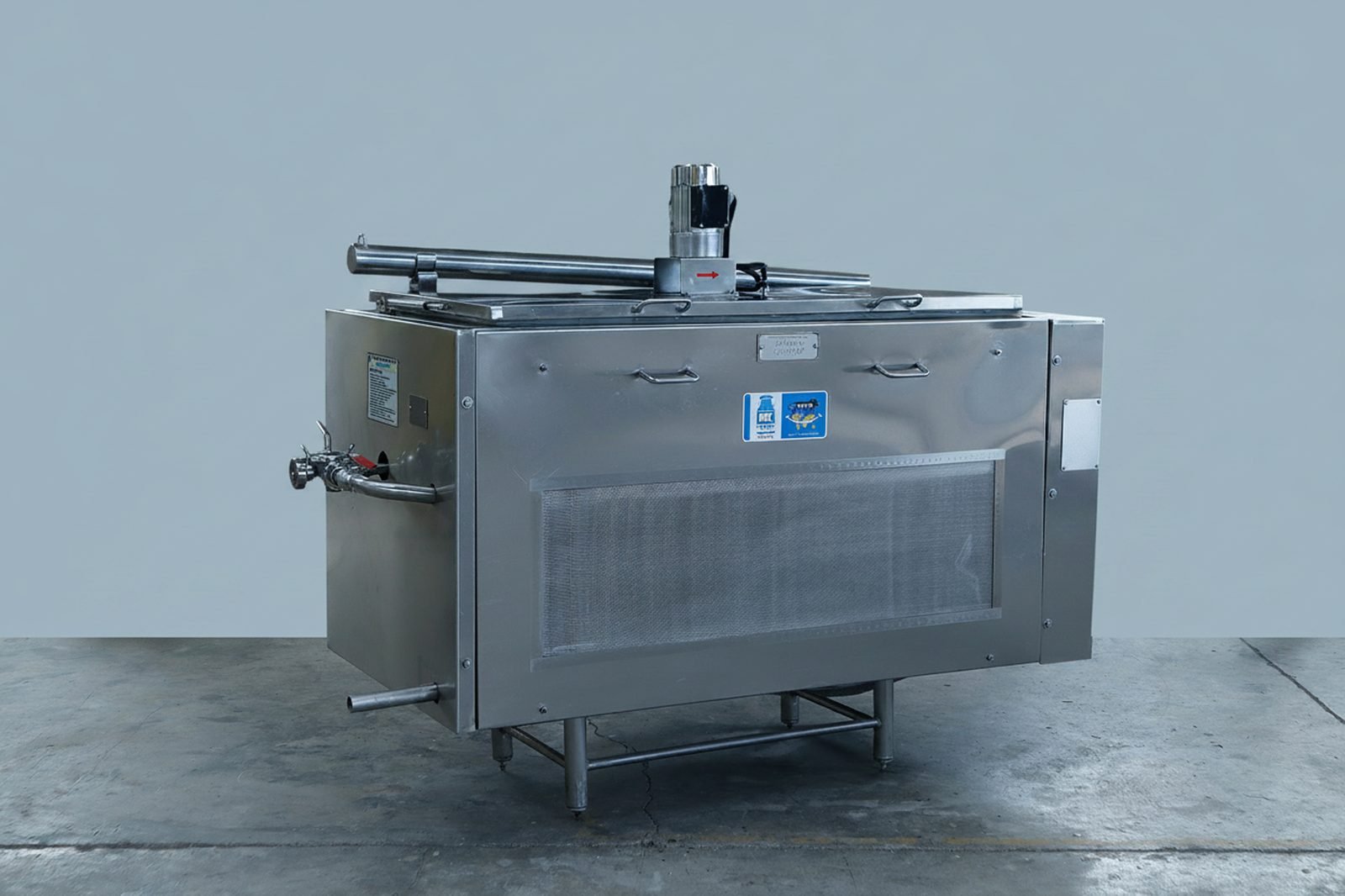

Milk Heating Vat
Processing

Milk Heating Vat

For Paneer and Curd manufacturing. Auto-controlled heating and cooling cycle. Hygienic design ensuring best product quality and optimum yield.

Capacity
200–300 L/hr
Control
Auto Cycle
Application
Paneer & Curd
Power
Low Consumption

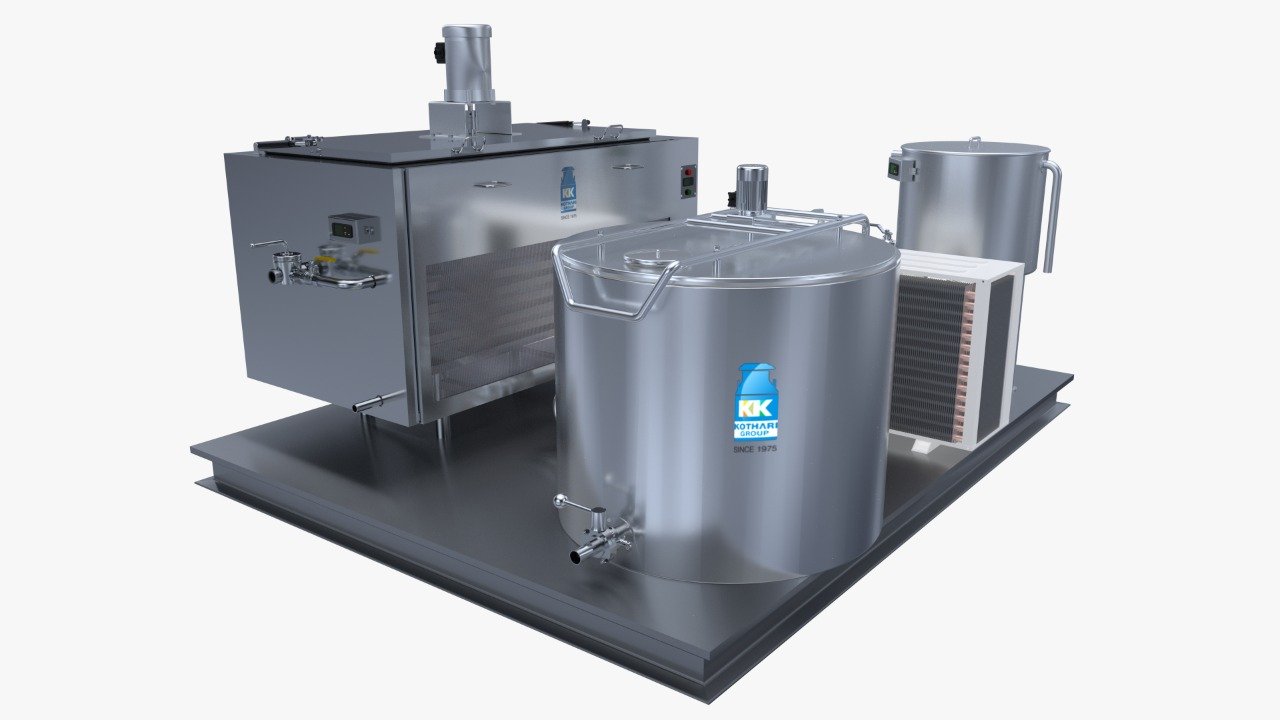

Novalac Farm Fresh Processor
All-in-One

Novalac Farm Fresh Processor

Complete pasteurising, Paneer and Curd solution. No boiler required. Auto milk heating and cooling cycle. 2000 L/day capacity.

Capacity
2000 L/day
Boiler
Not Required
Function
Pasteuriser
Control
Auto Cycle

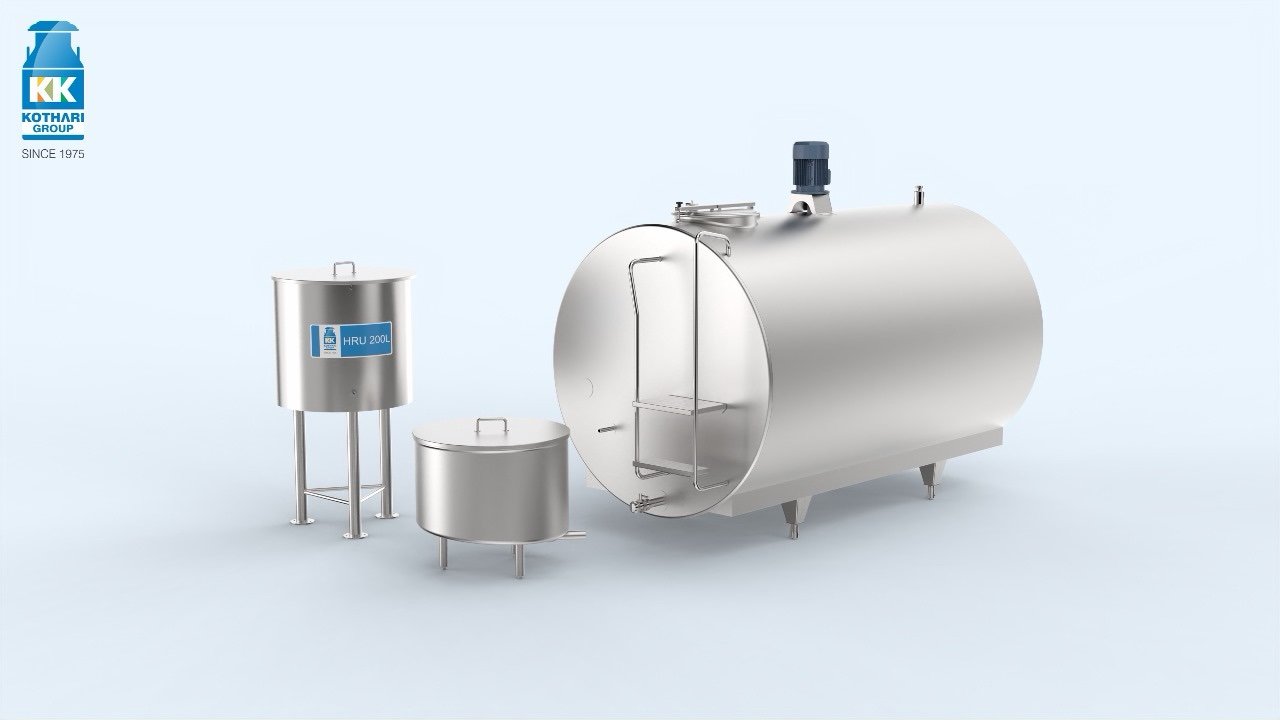

ADFPL complete product range
Complete ADFPL Range

Every product engineered to ISO 9001:2015. AISI 304 SS throughout. Emerson Scroll compressors. Full AMC support.
